Elfen wellbore & well log v.1.7

Release date: 11th November 2020


Successful hydrocarbon recovery has become increasingly challenging with the oil and gas industry exploring reservoirs under unfavourable geological conditions. Many operations rely on wellbore stability, usually provided by suitable mud-weight. Estimating the operating mud-weight window requires the combination of in-situ stress conditions, well trajectory and formation material properties to eliminate instability issues.


Elfen well log software is a simple yet powerful tool, which amongst other operations conducts analytical calculations to predict the onset of plastic yielding and damage around a wellbore. However, since analytical assumptions can become limiting, Elfen well log is directly integrated with Elfen wellbore, a dedicated finite element software package for modelling near-wellbore scenarios. These models can be used to assess more accurately areas of concern initially raised from analytical estimates.  Together with advanced constitutive material models, various complex mechanisms can be captured including:

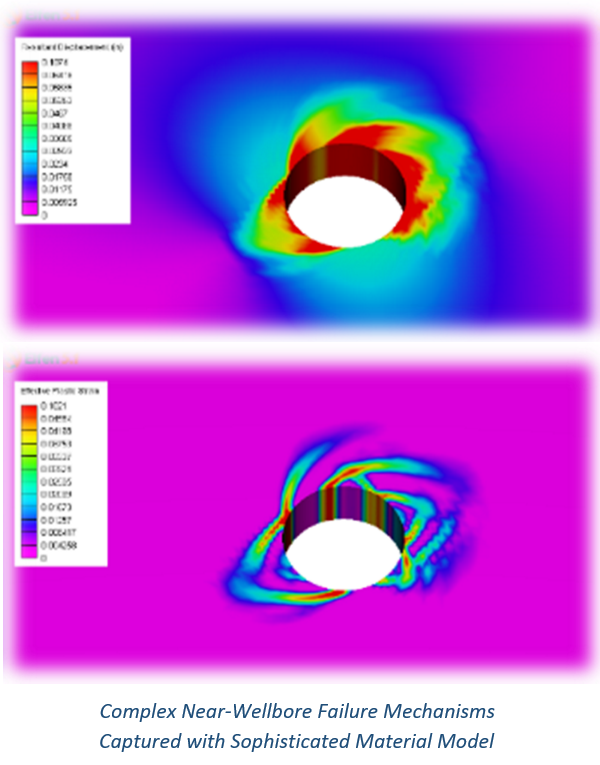

wellbore-1.7-stability-image-1-b.png wellbore-1.7-stability-image-1-b.png

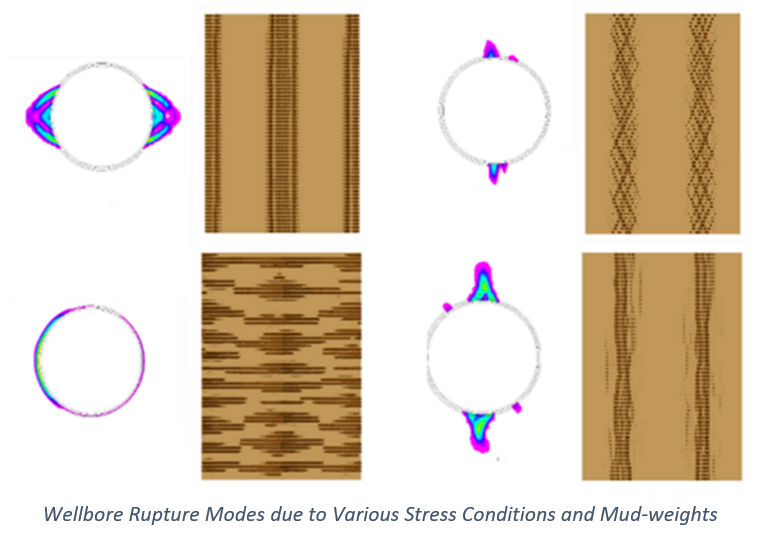

Elfen wellbore bullet.PNG    Breakout and breakdown modes


Elfen wellbore bullet.PNG    Assessment of any stress condition


Elfen wellbore bullet.PNG    Full range of well inclination / azimuth


Elfen wellbore bullet.PNG    Automated parameter sensitivity studies











Features and Benefits:


Elfen wellbore bullet.PNG    Integration between log-based data /assessment and state-of-the-art finite element modelling; parameters directly mapped from 1D/3D MEM

Elfen wellbore bullet.PNG    Robust modelling of complex phenomena with simple, intuitive and fast UI

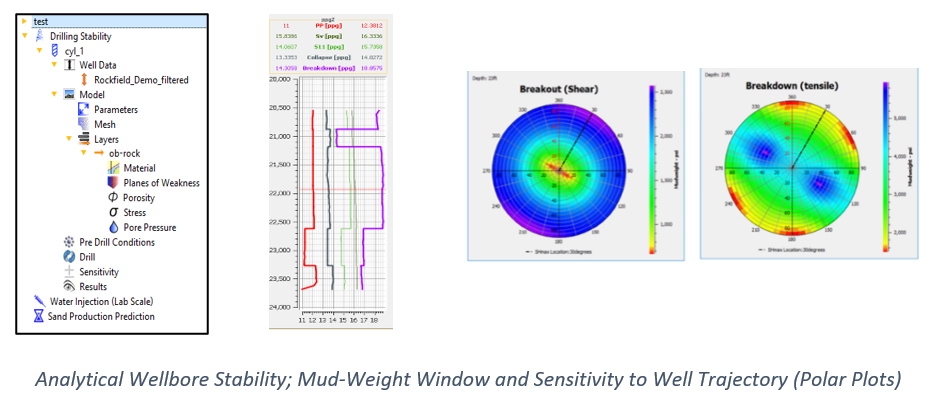

Elfen wellbore bullet.PNG    Elfen well log includes predefined functions such as mud-weight windows and polar plots, as well as a process editor for bespoke calculations

Elfen wellbore bullet.PNG    Sophisticated material models capable of representing

●  Tensile, shear and compaction yielding

●  Planes of weakness / bedding

Elfen wellbore bullet.PNG    Tools aid managing and mitigating risk:

●  Address uncertainty (sensitivity assessment)

●  Understanding of operating conditions and setting safety factors
