Mining - Block Caving

Mining - Block Caving

by William Ferguson




Block caving is a mining method that relies upon natural forces to break the rock. The cave is initiated by an undercut where a large area beneath the mining block is removed; gravity induced stresses then develop within the rock, causing it to fracture. The fracturing process is progressive and affects the entire rock mass overlying the undercut. To allow the cave to propagate, broken ore material has to be removed via the  drawbells on the extraction level. The fractured rock gravitates through the drawbells to drawpoints on the production level from where it is transported to the haulage level and out of the mine.


Components of a block cave


The block caving method applies to massive orebodies that dip steeply and have a large lateral and vertical extent. For the method to be successful, the rock mass must cave and break into manageable fragments. Fragmentation of the orebody occurs within distinct regions within a continuously propagating block cave. Duplancic and Brady (1999) proposed a conceptual model of a propagating block cave which can be characterised into five zones:

  • Pseudo-continuous domain – The rock mass in this region behaves mainly elastically. Rock mass behaviour and properties are those of an “undisturbed” rock mass.
  • Seismogenic zone – Microseismic activity occurs in this region primarily due to discontinuity damage and the creation of new fractures.
  • Zone of discontinuous deformation – The rock mass in this region is “disturbed”, and the zone provides minimal support to the overlying rock mass. Stress components within this region are typically low. Individual block geometry, discontinuity strength and the local stress state govern the stability of individual rock blocks. This zone is also referred to as the yielded zone.
  • Caved zone – This region consists of rock blocks that have been liberated from the cave back and have entered the muck pile. They are moving towards the drawpoints in response to draw.
  • Air gap – During continuous caving, the height of the air gap is a function of the extraction rate and the rate of cave propagation.

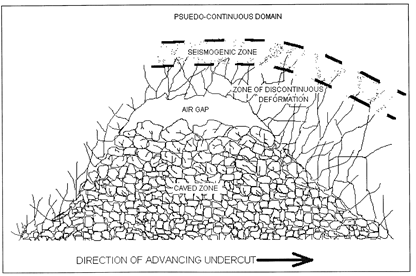

Conceptual block caving model (Duplancic and Brady, 1999)


Elfen Modelling


Cave mining refers to all mining operations where the orebody has caved naturally after undercutting and the caved material is recovered through drawpoints. Caving is the lowest cost underground mining method for large near-vertical orebodies provided that the drawpoint size and the handling facilities are tailored to suit the caved material.

The economic viability of a block cave and its productivity levels are dependent upon the degree of primary fragmentation that occurs within the seismogenic zone. Factors which affect this include:

  • Lateral extent of the undercut. Too large and the rate of propagation of ore into the drawpoints may exceed the extraction rate resulting in a blockage within the flow path of the fragmented ore; mine operations may have to potentially cease whilst drawpoints are cleared. Too small and the stresses within the cave roof may not be sufficient for fractures to develop and the cave may cease to propagate.
  • Degree of natural fractures within the ore body. If the ore body is highly competent, the cave may not propagate whereas for highly naturally fractured ore bodies the propagation rate may overwhelm the drawpoints. Often, the density and orientation of natural in-situ fractures within the ore body are extrapolated/deduced from mapping surveys of tunnel walls; often little is understood about the degree of natural fractures within the ore body itself.

This is where numerical simulation comes in to its own; it offers the advantage of running a multitude of scenarios of different rock properties, in-situ fracture definitions or undercut stratgies and assessing the production rate, and therefore, the economic viability of the mine.

Rockfield have over 20 years involvement in modelling of block caving operations using Elfen. The targeted ore body, rock formations and mine infrastructure can be incorporated into the Elfen model.

Fragmentation and fracturing of the ore body is a key concern, therefore any simulation must accurately represent this process. The in-situ natural fractures of the rock formation and ore body can either be represented by a) a planes of weakness continuum approach or b) explicitly representing the fractures via a discrete fracture network (DFN).

Undercutting is achieved by the gradual removal of the rock at the undercut level which induces a stress change within the ore body and rock mass above. Tensile failure of the rock may occur such that a new fracture develops or an in-situ fracture propagates. Note that Elfen is physics driven and any new fractures are determined solely by the stress regime. These fractures occur in the roof of the cave, within the seismogenic zone, above the propagating cavern. On a previous study, the seismogenic zone correlated well with the recorded on-site microseismic activity.

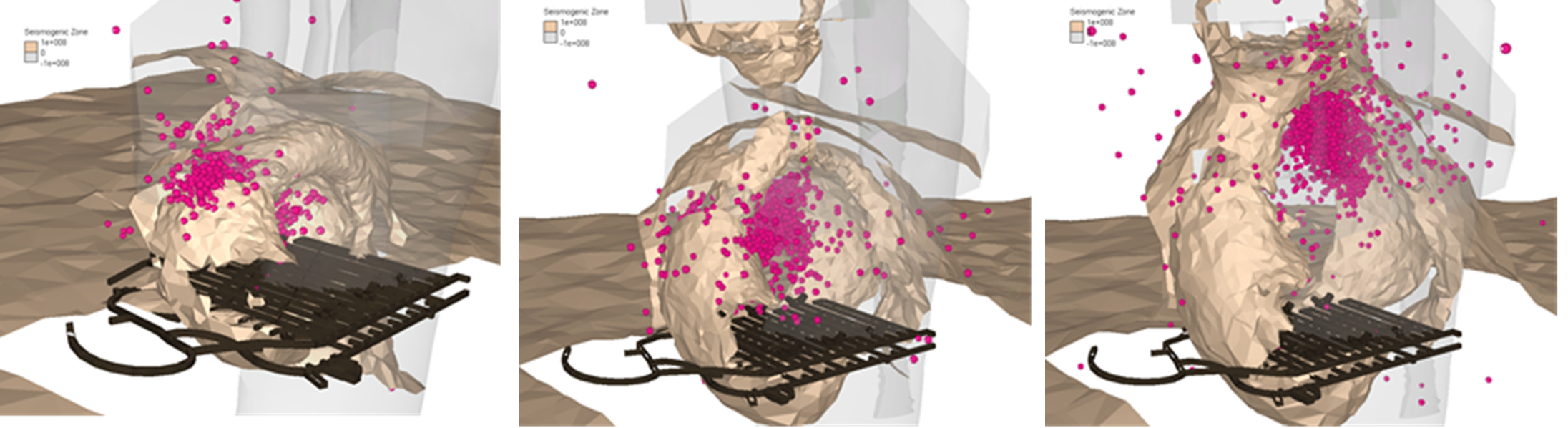

Progression of the seismogenic zone and recorded microseismic events


The fractured rock falls in to the muck pile or caved zone for extraction via the drawpoints. Development and progression of the caved region can be monitored within Elfen. If the caved region does not track the ore body or stalls, alternative undercutting strategies can be readily explored  to improve the efficiency and economic viability of the block cave.

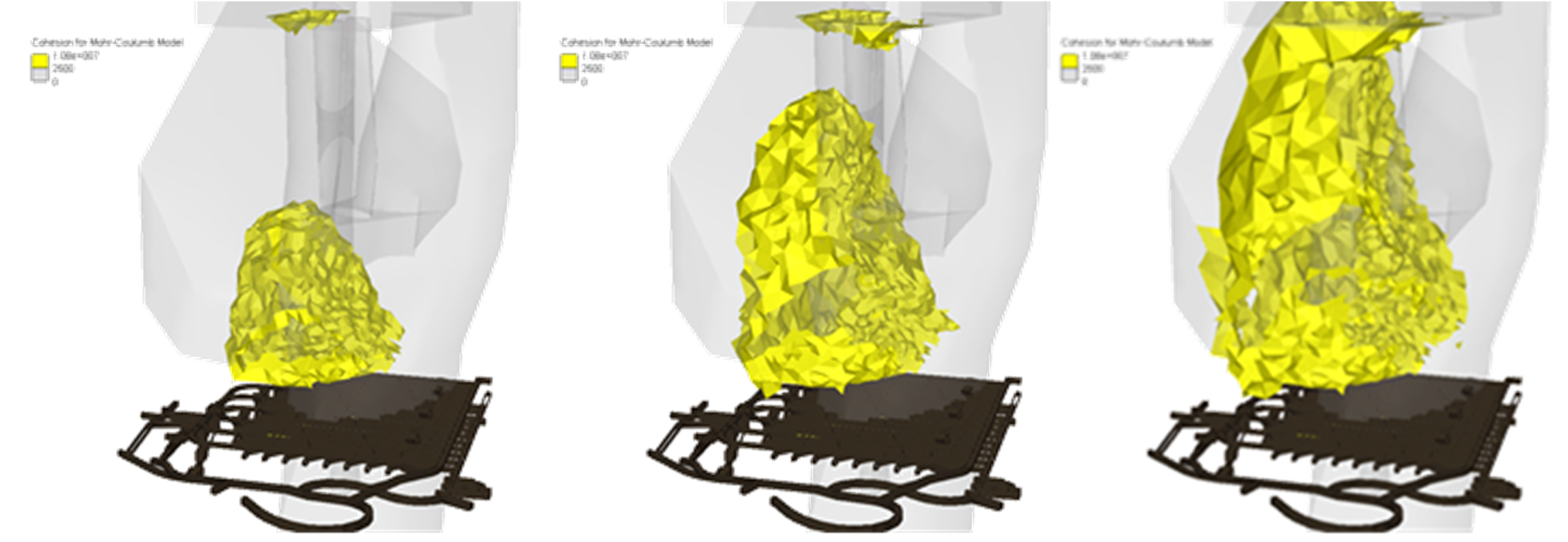

Progression of the caved region

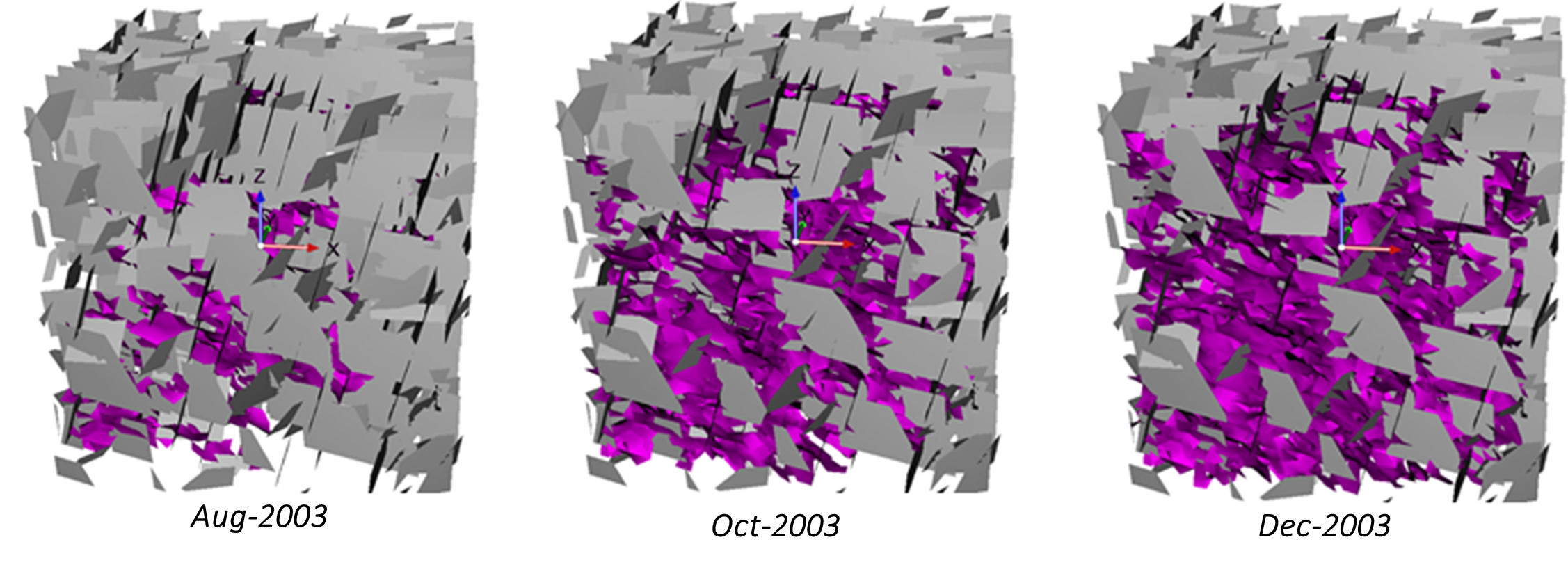

Block caving is all about the understanding of the primary fragmentation within the seismogenic zone. That may be the development of new fractures or the propagation of existing in-situ fractures. Elfen has a multitude of tools to assess the fractures including density, orientation, area and dominant set. Assessment of the primary fragmentation is key to understanding the cave progression and, therefore, the economic viability of the mine.

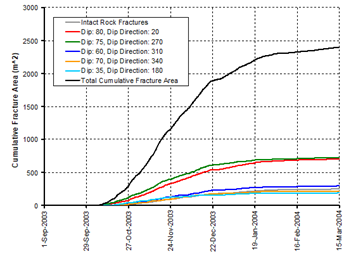

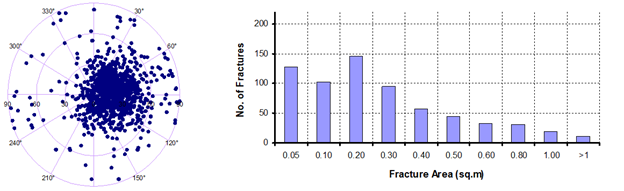

Assessment of primary fragmentation orientation and area.



Elfen provides a full understanding of the stress regime, deformation, seismogenic zone, particle size prediction and production profile that results from the excavation of block or sub-level caves. The features and benefits include:

  • Fast, efficient and intuitive UI which permits the rapid construction of complex mining geometry
  • Incorporate in-situ fracture sets from external software (e.g. FracMan) and assess their impact on the mining process
  • Populate the models from materials database, log data or from seismic survey data
  • Capture the stress and deformation evolution of the host rock throughout the mining process
  • Simulation of the progression of a block cave profile and understand the stress impact on mining infrastructure
  • Capture the seismogenic zone inherent in mining to better mitigate the potential of air blasts
  • Readily categorise the mining induced fractures and their impact on production volume
  • Identify remediation strategies for stalled block caves
  • Readily determine a particle size distribution curve of the mined ore




We hope this proven technology will be of great interest and value to your business.  If you are simulating problems within one of the application areas we’ve mentioned or you’re facing a different challenge that we can help with, then get in touch.
